A VAV control system for virtual terminals with Johnson control

Jul 27, 2020

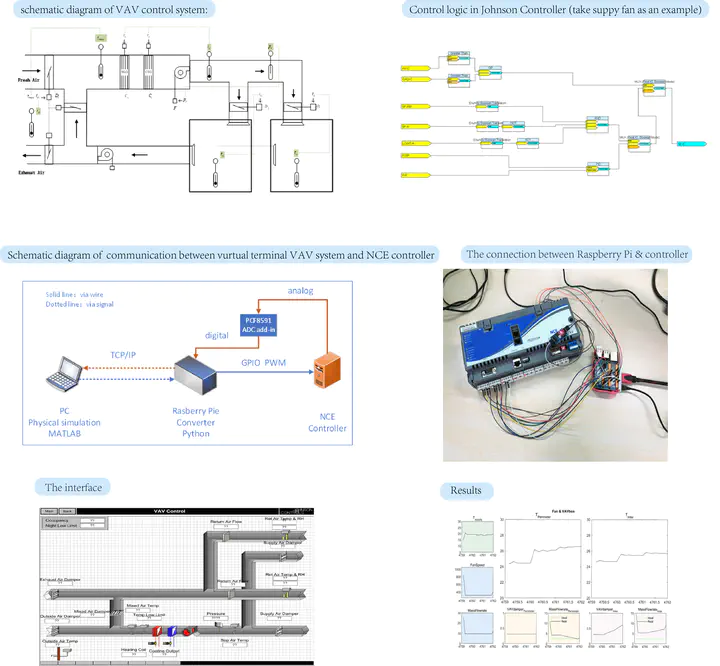

Results and proceeding

It is a task regarding a VAV control system with Johnson control in a team of 4 people. The project includes the following items:

  • Simulate VAV system (including VAV boxes, coils, fans, mixing boxes, duct system) of two rooms by MATLAB.
  • Formulate control logic of VAV system using NCE controller offered by Jonson Control.
  • Connect NCE controller (hardware) and VAV system (virtual terminal) by Raspberry Pi.
